Motivation

Deep learning models have been considered “black boxes” in the past, due to the lack of interpretability they were presented with. However, in the last few years, there has been a great deal of work toward visualizing how decisions are made in neural networks. These efforts are saluted, as one of their goals is to strengthen people's confidence in the deep-learning-based solutions proposed for various use cases. Deep learning for malware detection is no exception here. The target is to obtain visual explanations of the decision-making — put another way, we are interested in the highlights that the model makes in the input as having potential malicious outcomes. Being able to explain these highlights from a threat analyst’s point of view gives a confirmation that we are on the right path with that model. We need to have the confidence that what we are building does not take completely random decisions (and get lucky most of the time), but rather that it has the right criteria for the required discrimination. With proof that the appropriate, distinctive features between malware and clean files are primarily considered during decision-making, we are going to be more inclined to give the model a chance at deployment and further improvements based on the results it has “in the wild.”

Context

With visualizations we want to confirm that a given neural network is activating around the proper features. If this is not the case, it means that it hasn’t learned properly the underlying patterns in the given dataset, and the model is not ready for deployment. A potential reaction, if the visualizations indicate errors in the selection of discriminative features, is to collect additional data and revisit the training procedure used. This blog focuses on convolutional neural networks (CNNs) — a powerful deep learning architecture with many applications in computer vision (CV), and in recent years also used successfully in various natural language processing (NLP) tasks. To be more specific, CNNs operating at the character level (CharCNNs) are the subject of visualizations considered throughout this article. You can read more about the motivation behind using CharCNNs in CrowdStrike’s fight against malware in this blog, “CharCNNs and PowerShell Scripts: Yet Another Fight Against Malware.” The use case is the same in the upcoming analysis: detecting malicious PowerShell scripts based on their contents, with a different target this time aimed at interpretability. The goal is to see through the eyes of our model and to validate the criteria on which its decisions are based.





One important property of convolutional layers is the retention of spatial information, which is lost in the upcoming fully connected layers. In CV, a number of works have asserted that deeper layers tend to capture more and more high-level visual information. This is why we use the last convolutional layer to obtain high-level semantics that are class-specific (i.e., malware is of interest in our case) with the spatial localization in the given input. Other verifications in our implementation are aimed at reducing the number of unclear explanations due to low model accuracy or text ambiguity. To address this, we take only the samples that are correctly classified, with a confidence level above a given decision threshold of 0.999.



Related Work

Among the groundbreaking discoveries leading to the current developments in CNN visualizations, there is proof (Zhou et al., 2015a) that the convolutional units in the CNNs for CV, act as object detectors without having any supervision on the objects’ location. This is also true in NLP use-cases, as the localization of meaningful words discriminative of a given class is possible in a similar way. Among the initial efforts towards CNN visualizations we can also mention the deconvolutional networks used by Zeiler and Fergus (2014) to visualize what patterns activate each unit. Mahendran and Vedaldi (2015) and Dosovitskiy and Brox (2015) show what information is being preserved in the deep features without highlighting the relative importance of this information. Zhou et al, 2015b propose CAM (class activation mappings) — a method based on global average pooling (GAP), which enables the highlighting of discriminative image regions used by the CNN to identify a given category. The direct applicability is in CV, as it is the case with most of the research done in this respect. However, it should be mentioned, once again, that the use cases extend to NLP as well, with a few modifications in the interpretations.



CAM has the disadvantage of not being applicable to architectures that have multiple fully connected layers before the output layer. Thus, in order to use this method for such networks, the dense layers need to be replaced with convolutional layers and the network re-trained. This is not the case with Grad-CAM (Selvaraju et al., 2016), Gradient-weighted CAM, where class-specific gradient information is used to localize important regions in the input. This is important as we want a visual explanation to be first, class-discriminative, meaning we want it to highlight the features (words/characters/n-grams) that are the most predictive of a class of interest which, in our case, would be malware.





Grad-CAM

Figure 1 offers a high-level view of how Grad-CAM is applied to textual inputs. Particularly, our interest is to visualize malicious PowerShell content in a heatmap fashion. In these visualizations, the most predictive features for malware are highlighted with different intensities according to their weights, from the perspective of our convolutional model. The following elements and actions are applicable in the mentioned Grad-CAM flow:

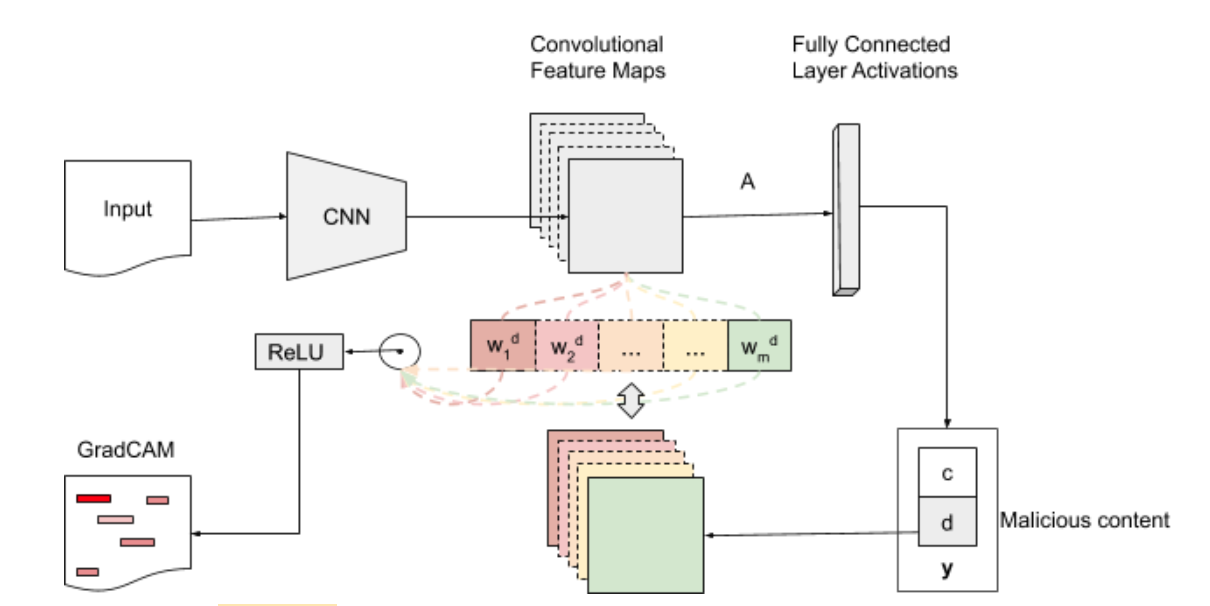

Figure 1: High-level view on the applicability of Grad-CAM for textual inputs. The more specific use-case hinted to in the diagram is heat map visualizations for malicious PowerShell scripts. (click image to enlarge)
  • Inputs — in the current use-case the inputs provided are PowerShell scripts contents and the category of interest, which is malware in our case.
  • Forward pass is necessary as we need to propagate the inputs through the model in order to obtain the raw class scores before softmax.



  • Gradients are set to 0 for clean and 1 for malware (the class that is targeted).
  • Backpropagate the signals obtained from the forward pass to the rectified convolutional feature map of interest, which is actually the coarse Grad-CAM localization.



  • GradCAM outputs, in our case, are visualizations of the original scripts, with the most predictive features for the given class highlighted.



In Grad-CAM we try to reverse the learning process in order to be able to interpret the model. This is possible using a technique called gradient ascent. Instead of the regular weighted delta updates that are done to reduce the loss gradient x (-1) x lr, in gradient ascent, more delta is added to the area to be visualized in order to highlight the features of interest.



The importance of the k-th feature map for target class c is determined by performing Global Average Pooling (GAP) in the gradient of the k-th feature map: \< \alpha_k^c = \overbrace{\frac{1}{Z} \sum_{i}\sum_{j}}^{global\; average\; pooling} \underbrace{\frac{\delta y^{c}}{\delta A_{ij}^{k}}}_{gradients\; via\; backprop} \>



where

\( A_k \in \mathbb{R} ^ {u \times v} \) is the k-th feature map produced by the last convolutional layer, of width u and height v. \( y ^ c



\) — any differentiable activation (not only class scores), which is why Grad-CAM works no matter what convolutional architecture is used.



Global-average-pooling is applied on the gradients computed:

\< \frac{\delta y^{c}}{\delta A_{ij}^{k}} \>

Thus, we obtain the weights \( \alpha_k^c \), which represent a partial linearization of the deep network downstream from A and capture the importance of feature map k for a target class c.

Then we take the weighted average of the activation for each feature map. In order to do this, we multiply the importance of the k-th feature map:

\< L_{Grad-CAM}^{c} = ReLU \underbrace{\left(\sum_{k}{\alpha_k^c}{A^k}\right)}_{linear\; combination} \>

\( L_{Grad-CAM}^{c} \) class discriminative localization map, which is a weighted combination of the feature maps, followed by ReLU.




In our experiments, the following steps apply at the implementation level:



1. Automatically find the last convolutional layer in the network. Generally, the feature maps in the last convolutional layers tend to have the best compromise between high-level semantics and detailed spatial information. This is precisely the reason why we also use it in this process. In Tensorflow, which is the framework used in our experiments, we can identify various types of layers by their names. For our architecture in particular, we can iterate through the layers in reverse order and determine the first layer with a three-dimensional output, which is actually our last 1D convoluted layer.
Figure 2: Heatmap visualizations of clean (left) and malicious (right) PowerShell files, resulted from GradCAM.
2. We build a gradient model by providing:

a. Inputs: the same as the inputs to the pre-trained CharCNN model b. Outputs:

i.The output to the final convolutional layer (previously determined) of the network ii. The output of the softmax activations from the model

3. In order to compute the gradient of the class output w.r.t. the feature map, we use GradientTape for automatic differentiation. 4. We pass the current sample through the gradient model and grab the predictions as well as the convolutional outputs. 5. Process the convolutional outputs such that they can be used in further computations (i.e., discard the batch dimension, evaluate the tensors, convert to numpy arrays if necessary, etc.). 6. Average the feature maps obtained and normalize between 0 and 1.
The result of all of the processes described above is a heatmap visualization for the class label of interest (i.e., malware in our case). We scale this heatmap and use it to check out where the CNN is “looking” in the input to make that classification. Examples of heatmap visualizations for both the clean and malicious PowerShell inputs are displayed in Figure 2. The left heatmap represents a clean file, with different nuances of blue for different substrings, where deeper blue is correlated with the most predictive features for clean scripts. On the right, we have a similar interpretation for malware. A darker assigned color means that the corresponding substring is more likely describing suspicious activity.



Most Predictive Features

In order to justify the class-discrimination capabilities of our PowerShell model, we produce visualizations for both malware and clean samples, with a focus on the class of interest — malware. We consult with our threat analysts and conclude that many of the substrings highlighted in the samples are actually of interest in classifying maliciousness in scripts. Through this section, we are often going to refer to these highlights as substring matches. A strict selection is performed on all of the generated substring matches. These are checked against our Malquery database, with zero tolerance for false positives. Later, the substrings in the selected subset are considered for additional support to our PowerShell detection capabilities. The following sections briefly introduce three of the broadest categories of important substrings for our model in deciding the maliciousness of PowerShell scripts.

Base64 Strings

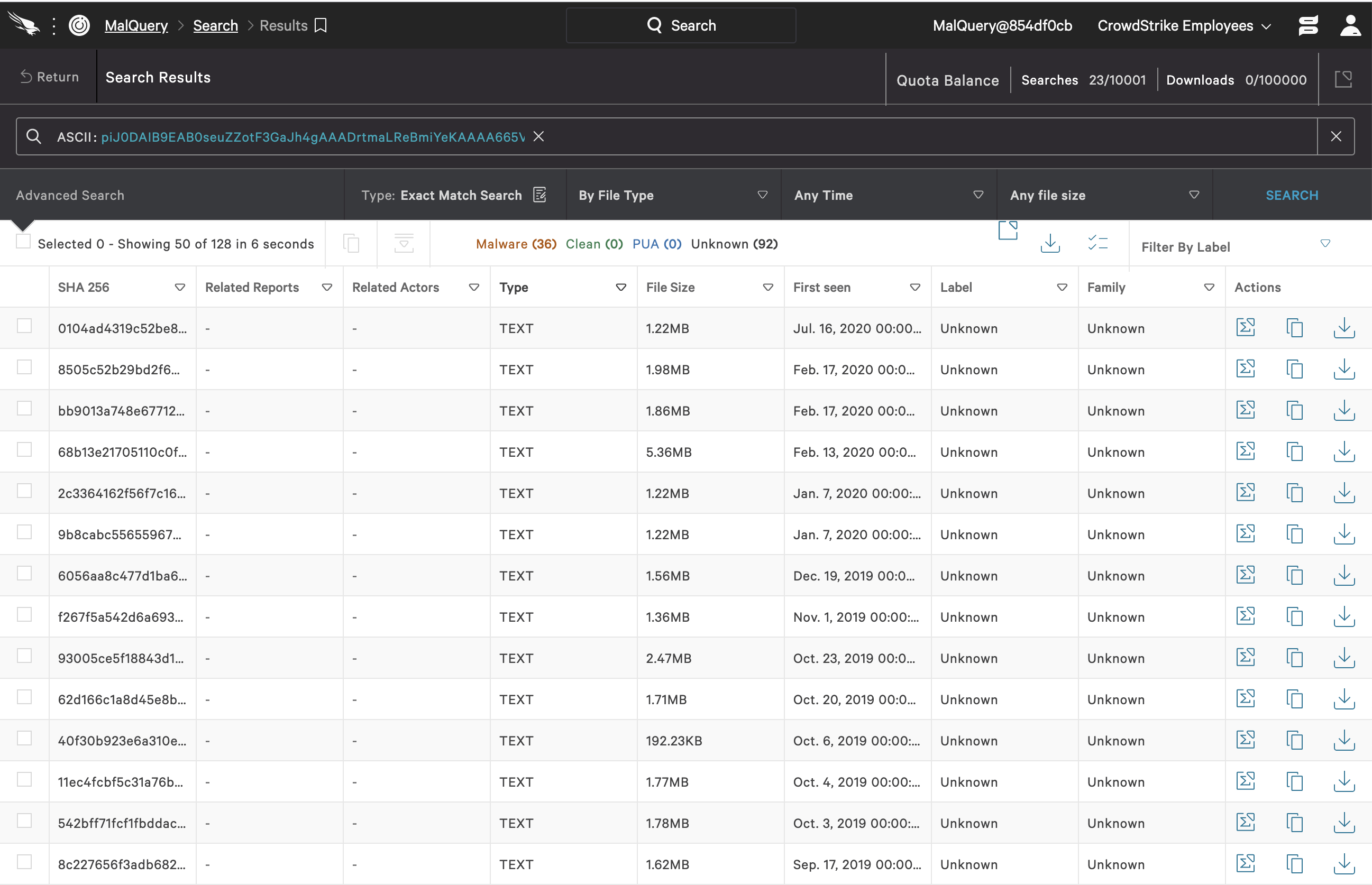

Substring 1: piJ0DAIB9EAB0seuZZotF3GaJh4gAAADrtmaLReBmiYeKAAAA665Vi+yhtGdMAItNGIP4AQ+FwZ4DAItFCIP4
Click image to enlarge.
Many of the substring matches generated are Base64 strings, which are eventually converted to byte code. Take, for example, Substring 1, a Base64 string that also shows up in a malicious script (i.e., out-2112577385.ps1) on a page full of exploits. This string, of particular importance for our model in detecting malware in the given PowerShell content, is a tiny part of a huge Base64 string made out of many smaller pieces. The mentioned full string decodes into the hexdump of a Portable Executable (PE) file, which is a malicious AutoIt compiled file. Among the elements identified in the mentioned PE code, we can count intercepting both asynchronous and synchronous keyboard presses, the ability to send and receive files, as well as some other nested Base64 encoded PE content.

Common Syntax

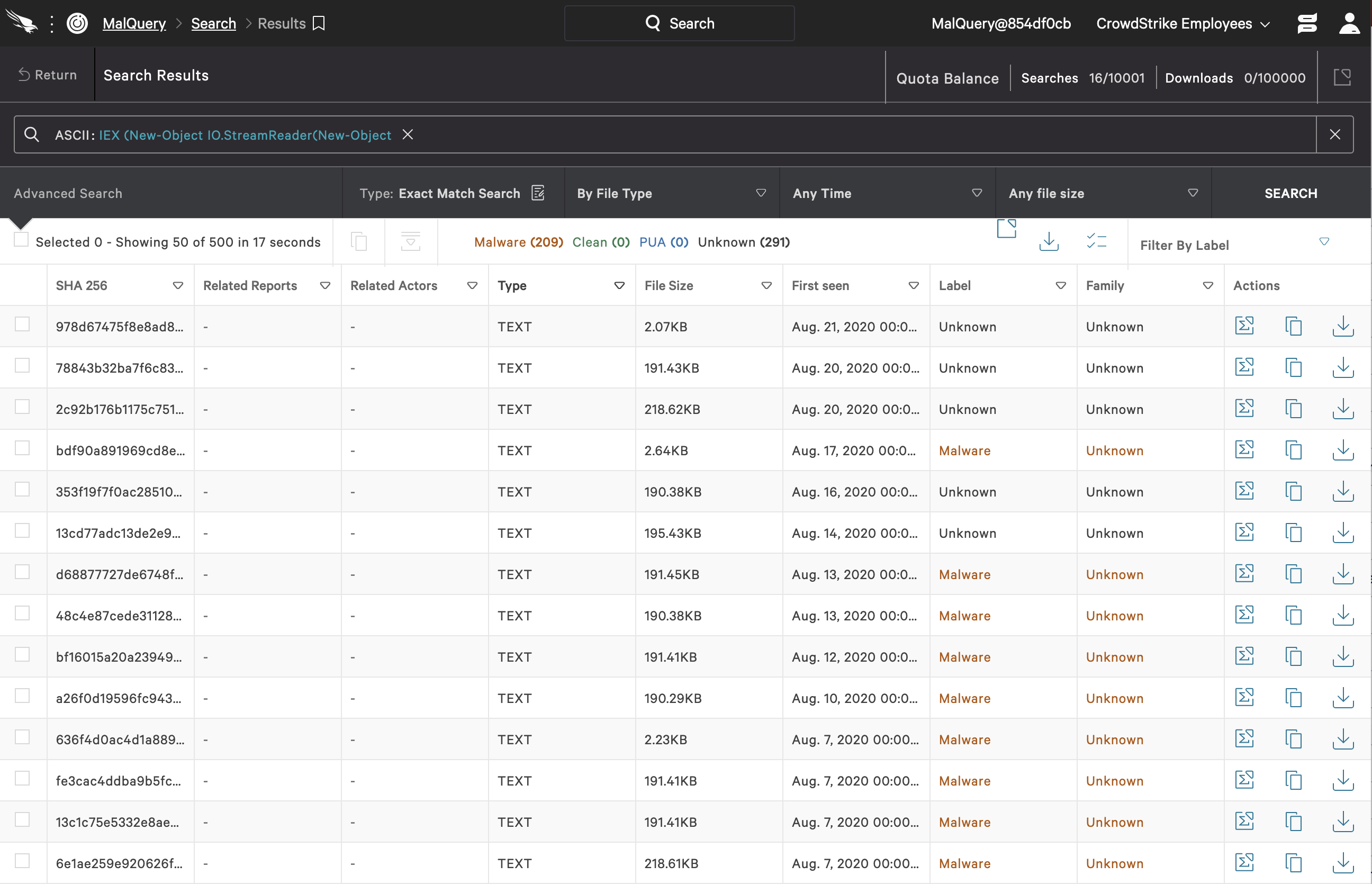

Substring 2: IEX (New-Object IO.StreamReader(New-Object
Click image to enlarge.

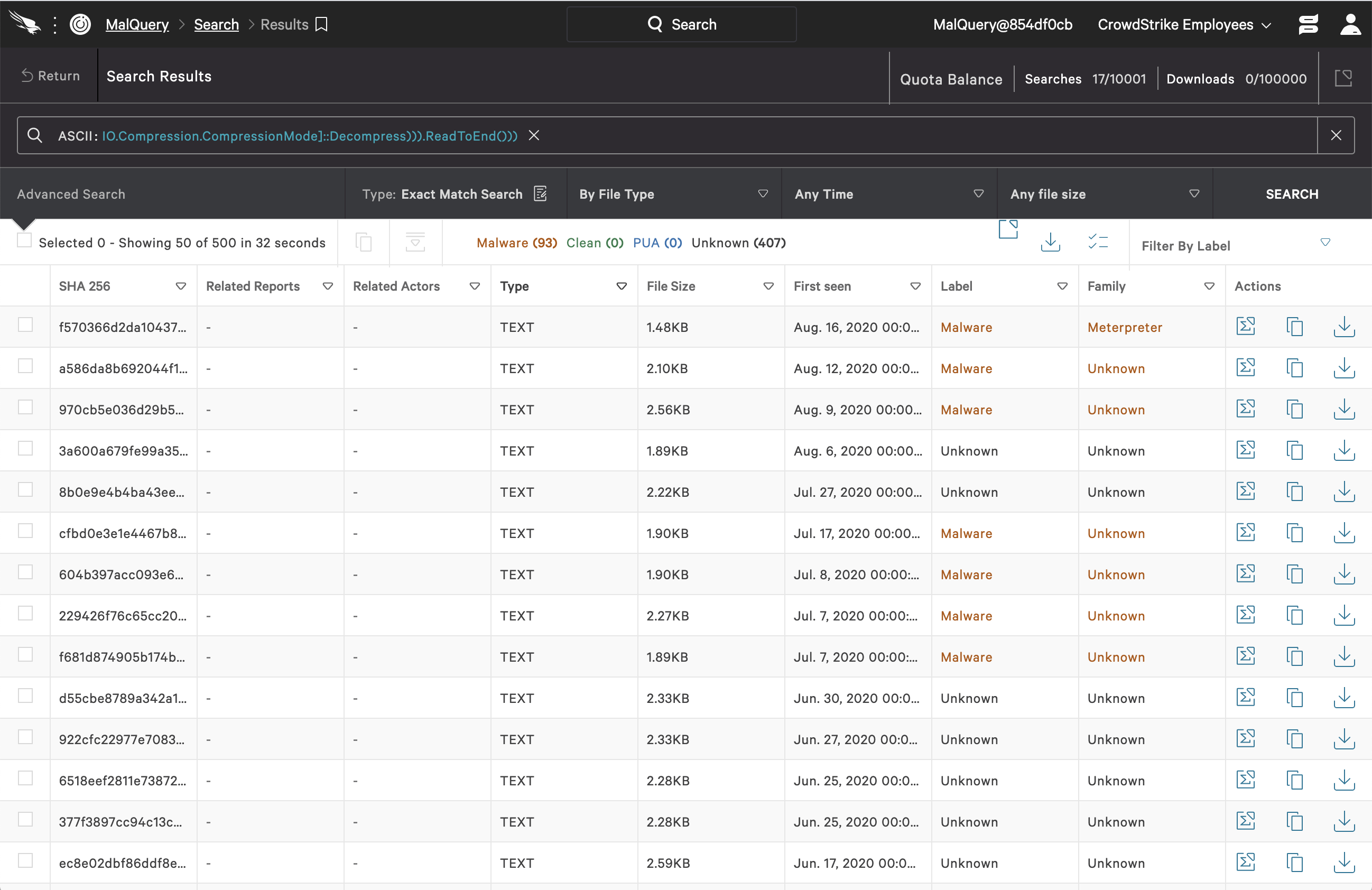

Substring 3: IO.Compression.CompressionMode>::Decompress))).ReadToEnd()))
Click image to enlarge.
The opposite of Base64 strings, in terms of readability, is common PowerShell syntax, which is also included in the patterns generated. In this category we have substrings from comments, invokes that are not necessarily indicators for dirty scripts, download paths/upload links, etc. These are, in general, not a safe bet for standalone use in malware hunts. This is one of the reasons why we double-check the ML (machine learning)-picked substring matches against our database and remove the ones that give even one false positive. However, some of this regular PowerShell syntax keeps showing up in the set of selected patterns. Substring 2 is a good example, representing a part of a decoding sequence for Base64 strings. This type of encoding is a common practice used by attackers to evade simple detection techniques (e.g., regex, heuristic approaches). The last part of said decoding syntax also shows up as one of the ML-selected patterns of interest here — see Substring 3. Perhaps surprisingly, again, Substring 3 shows up in 93 malicious scripts in an exact Malquery search, and in no files tagged as clean. However, this is still common syntax that in and of itself has nothing to do with malware. Nonetheless, our interpretation is that it is more likely that we will see this syntax in malicious code rather than in clean scripts, as we’ve rarely encountered benign PowerShell with Base64 strings and their almost immediate decoding. Another substring match that is not part of a Base64 string is Substring 4, which, according to the PowerShell documentation, is short for running a PowerShell command in hidden window style. It is perhaps implied that this substring match might also show up in clean PowerShell scripts as part of some benign automation. However, from our validation, this substring search in Malquery only hits tagged dirty files, if we do not consider the 318 hits with unknown labels. Thus, this is an example of a pattern that will be subject to further validation in staging. Substring 4: powershell /w 1 /C

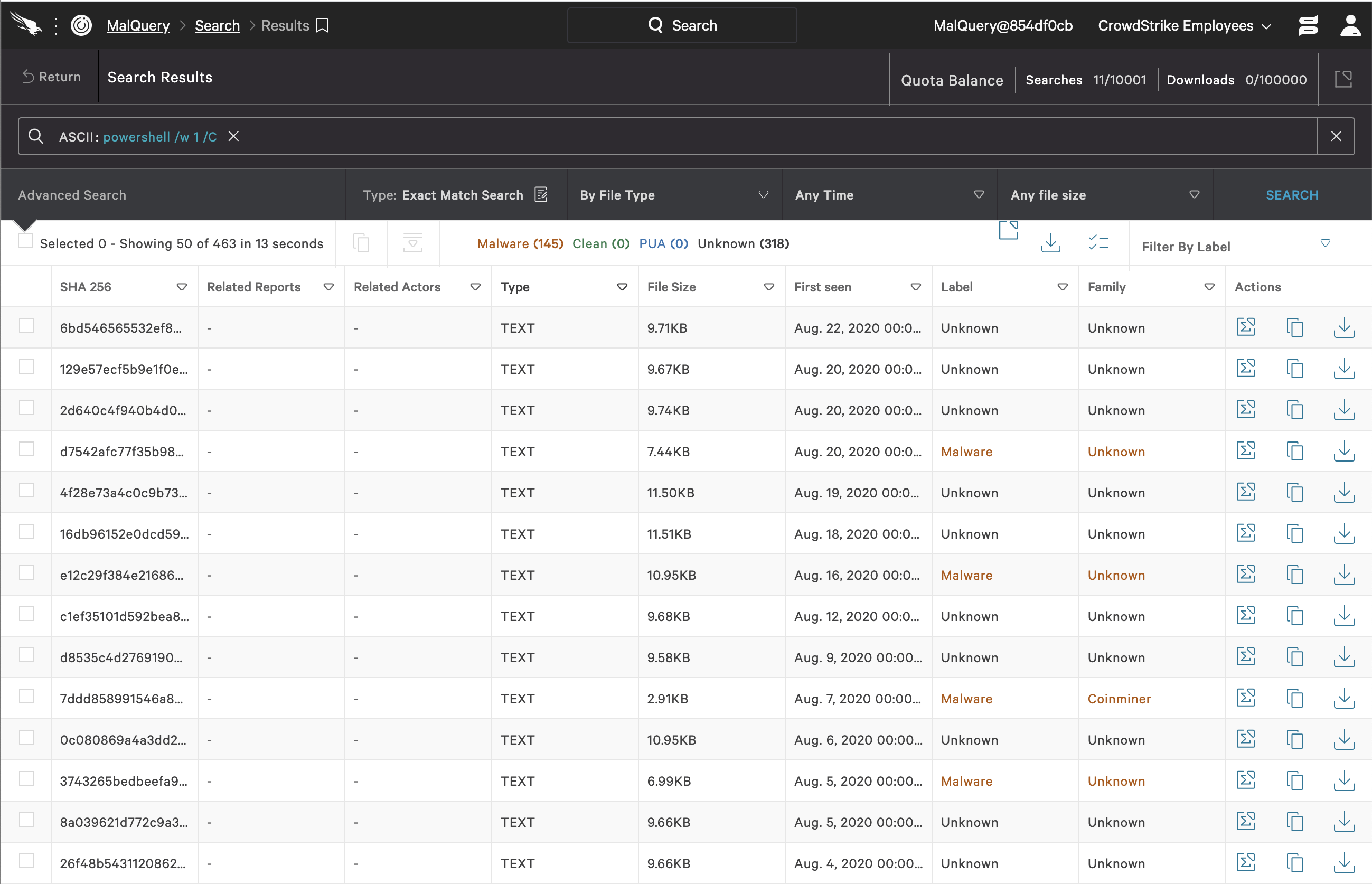

Click image to enlarge.

Common Obfuscation

Obfuscation techniques for Windows Portable Executables are also detected as significant strings in our model. It is clear why attackers would try to obfuscate other executions launching from within the current script. Two such examples selected from our set of potential templates are Substring 5 and Substring 6.

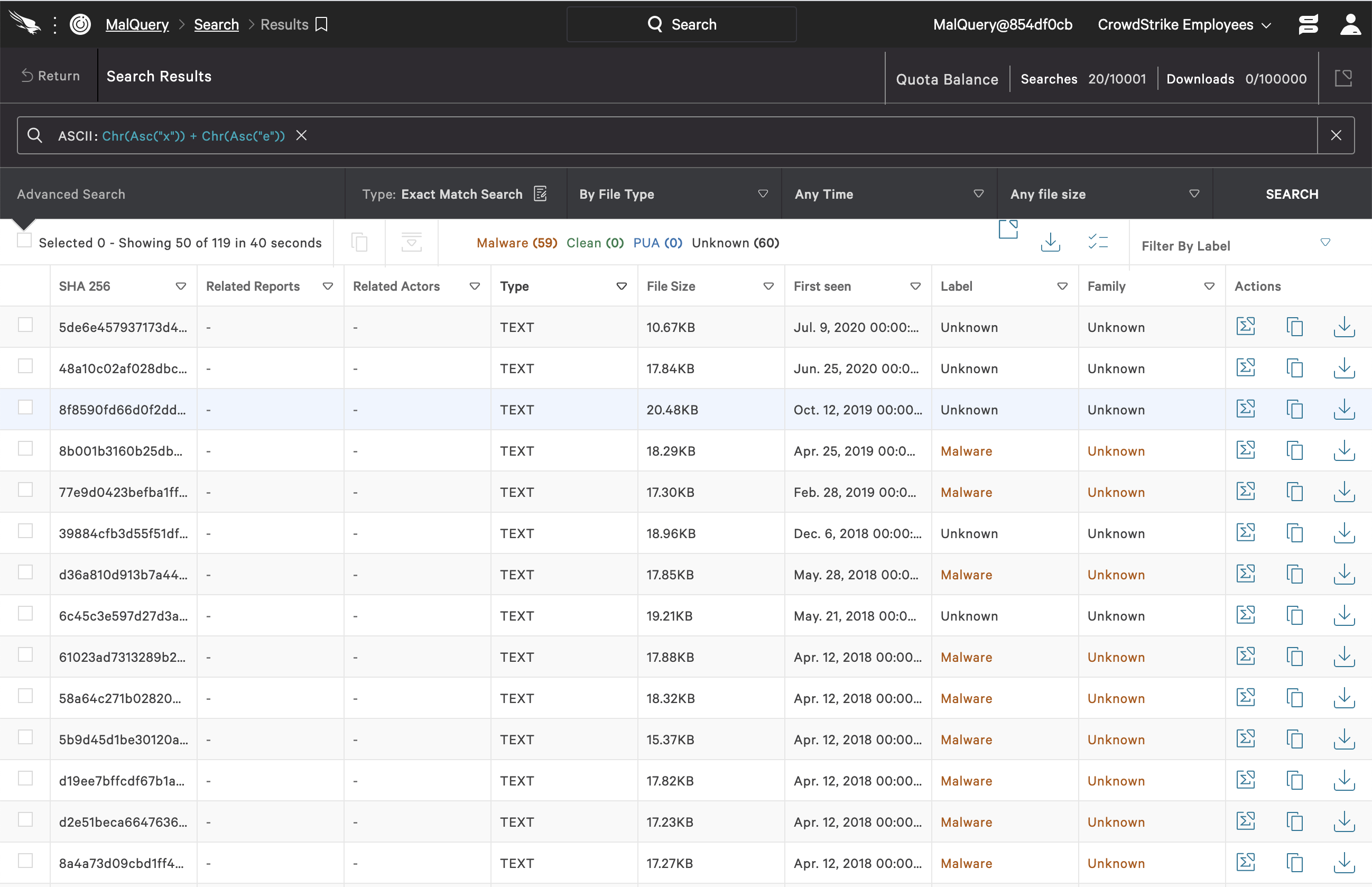

Substring 5: Chr(Asc("x")) + Chr(Asc(“e”))
Click image to enlarge.

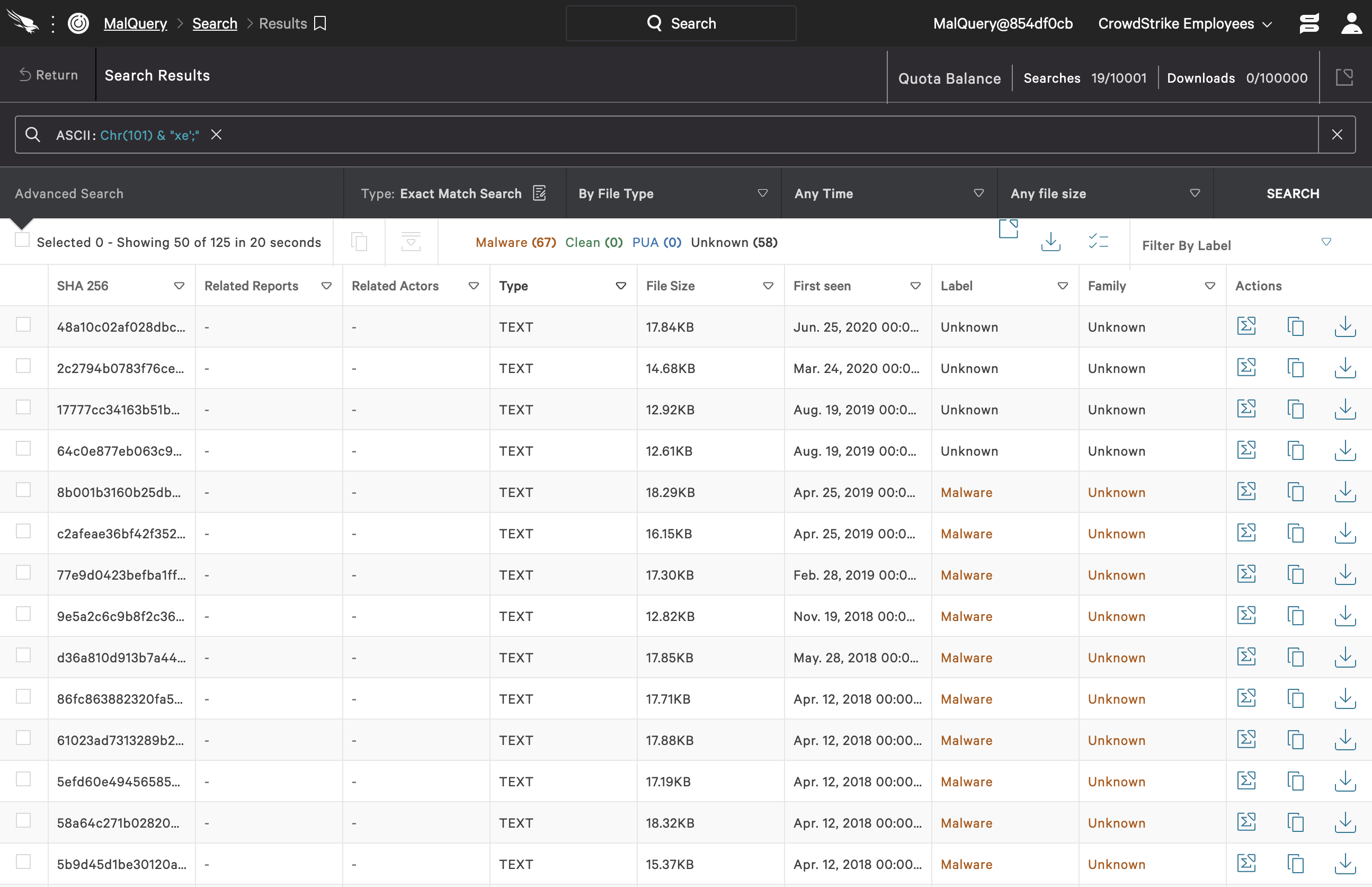

Substring 6: Chr(101) & "xe';"
Click image to enlarge.

Conclusion

In this blog we introduced a visualization technique that exploits the explainability potential of convolutional neural networks. The context, motivation and importance of seeking interpretability in our models were also discussed. We briefly described the components and flow in a visualization technique coming from the computer vision domain, namely Grad-CAM. By employing this technique with additional filtering, we can obtain a set of malware predictive substrings that further complement our current detection capabilities for PowerShell scripts. A few examples of such substrings are discussed at length in this article.
