Native Java Bytecode Debugging without Source Code

At CrowdStrike, we’ve seen a moderate increase in Java-based malware recently, with Remote Access Tools (RATs) like Adwind becoming increasingly prevalent. Reverse engineering Java is typically very straightforward, since excellent Java binary decompilers have existed for years. Tools like JD-GUI make Java analysis a breeze and do an excellent job at recovering Java binaries’ source code (minus the comments). In cases where we need to dynamically debug Java programs, decompiled Java can be exported from the decompiler and then imported into a Java IDE like Eclipse as part of a new Java project. This allows us to build a project using the decompiled code and then dynamically debug it through the IDE. However, this all goes out the window when dealing with Java bytecode-based obfuscation, as most Java IDEs won’t compile raw JVM instructions, nor allow you to step through these instructions without the original source code.

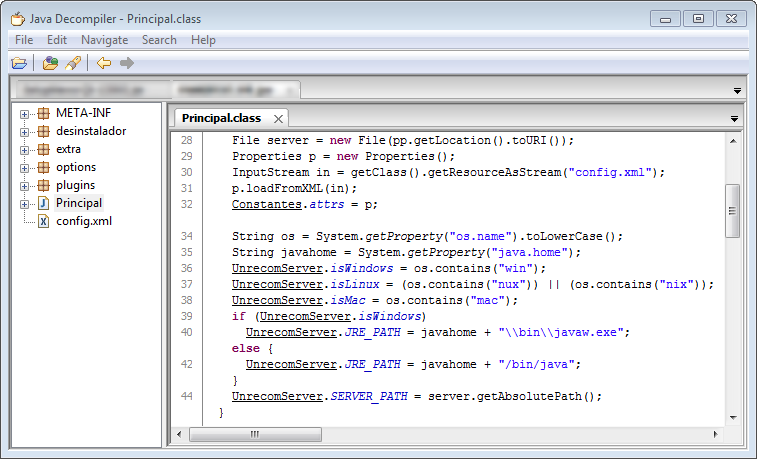

Decompiled Non-Obfuscated Java

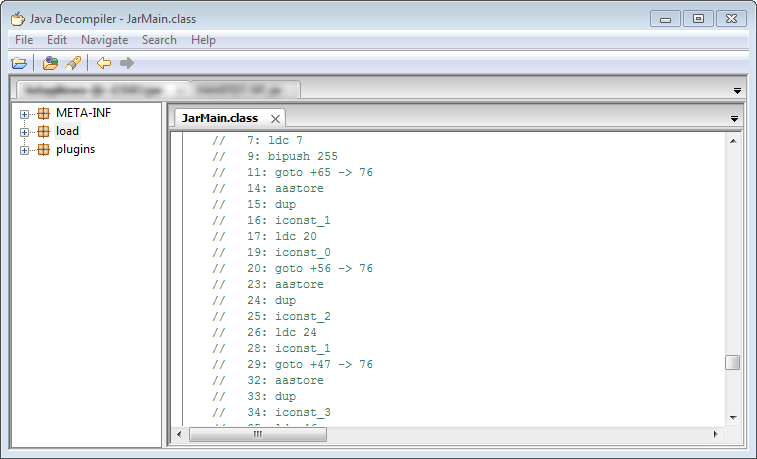

Decompiled Obfuscated Java

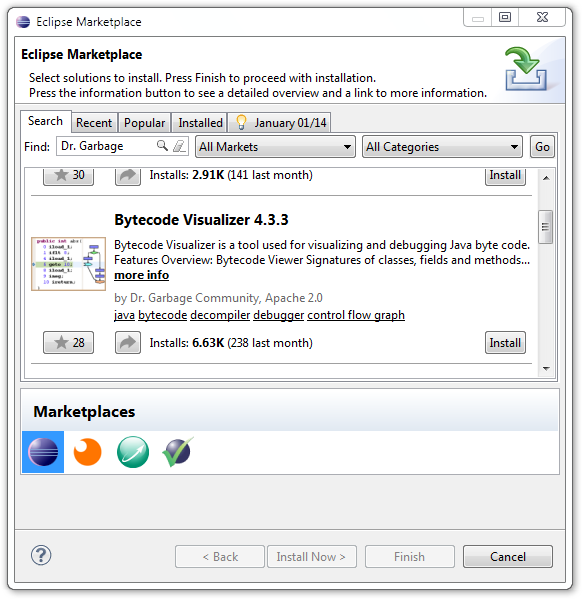

The best solution we’ve found for debugging malware’s native Java bytecode is Dr. Garbage’s Bytecode Visualizer. We haven’t seen any thorough walkthroughs on installing and using Bytecode Visualizer, so this blog entry serves as a step-by-step guide on how to dynamically analyze native Java bytecode with Bytecode Visualizer:

1. Install the Java SE JDK

The Java Standard Edition Development Kit can be downloaded from Oracle’s website at http://www.oracle.com/technetwork/java/javase/downloads/index.html. JDK 7 is currently the latest version and can be downloaded directly from http://www.oracle.com/technetwork/java/javase/downloads/jdk7-downloads-1880260.html.

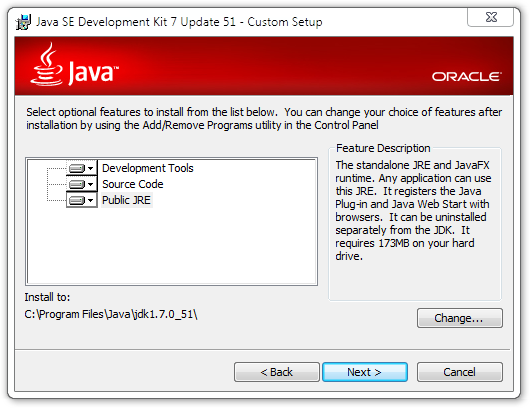

During the JDK installation, be sure to have the JDK installer install the Public JRE as well if it isn’t already installed:

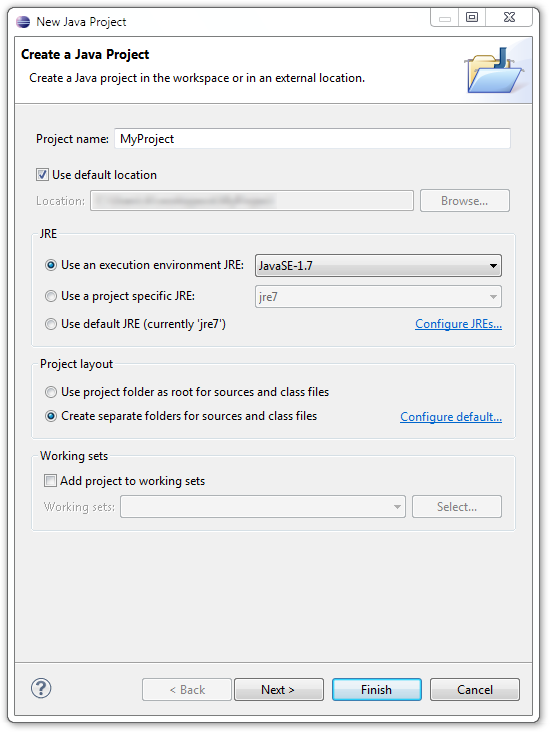

Create a Java Project

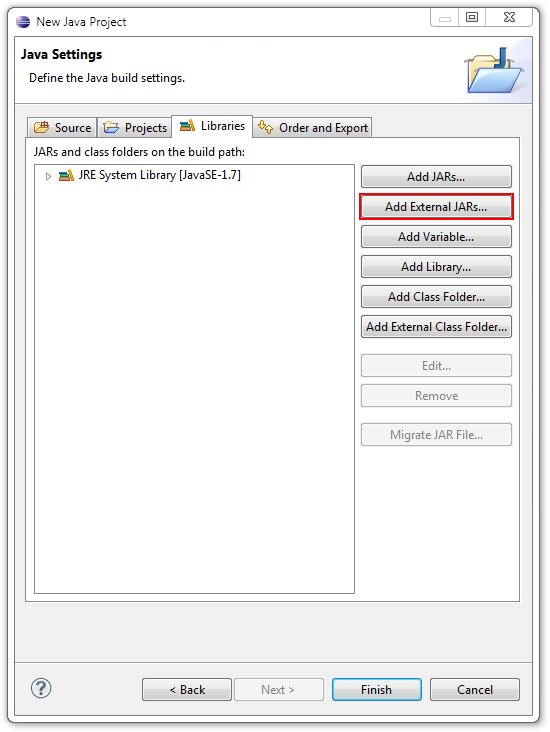

In the Java Settings window, click the Libraries tab. In the Libraries tab, press the Add External JARs button and select the JAR file you want to debug, thereby adding it to the Java project’s build path:



Java Settings

Once the JAR has been added to the build path, press the Finish button.

5. Open the JAR’s Code with Bytecode Visualizer

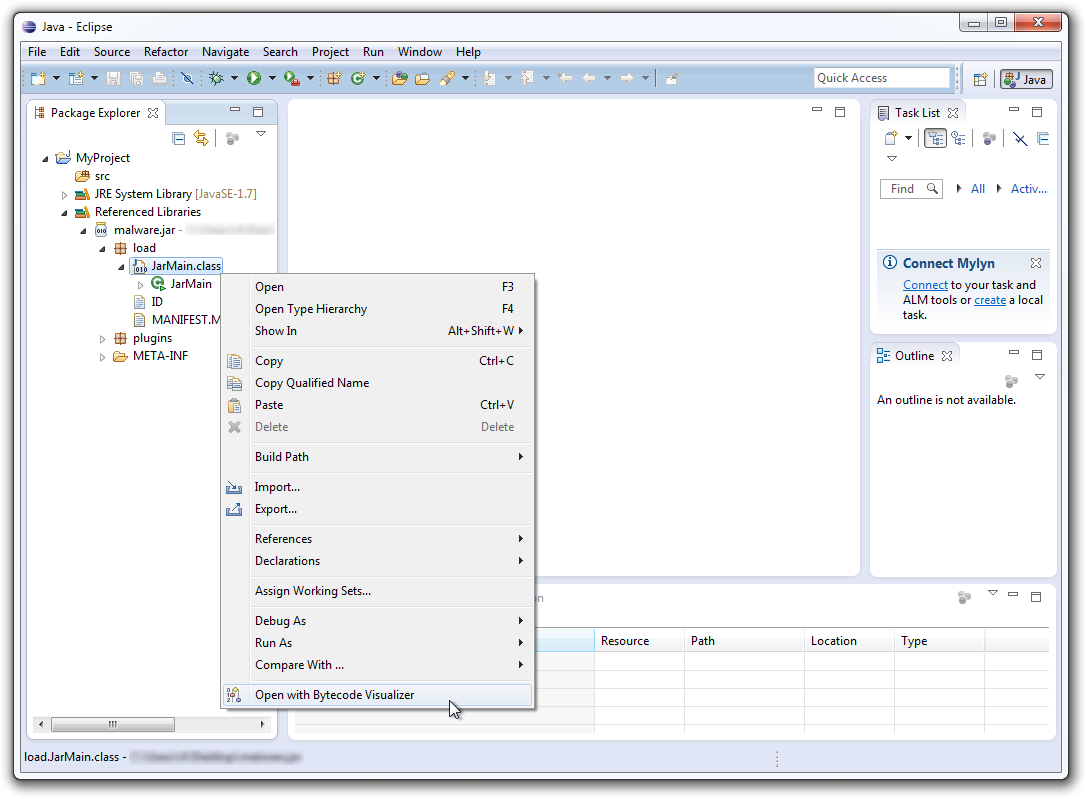

In the Package Explorer tab, expand your project’s Referenced Libraries to find your JAR file. Right-click on the class you want to debug and select Open with Bytecode Visualizer:



Open with Bytecode Visualizer

6. Set Breakpoints

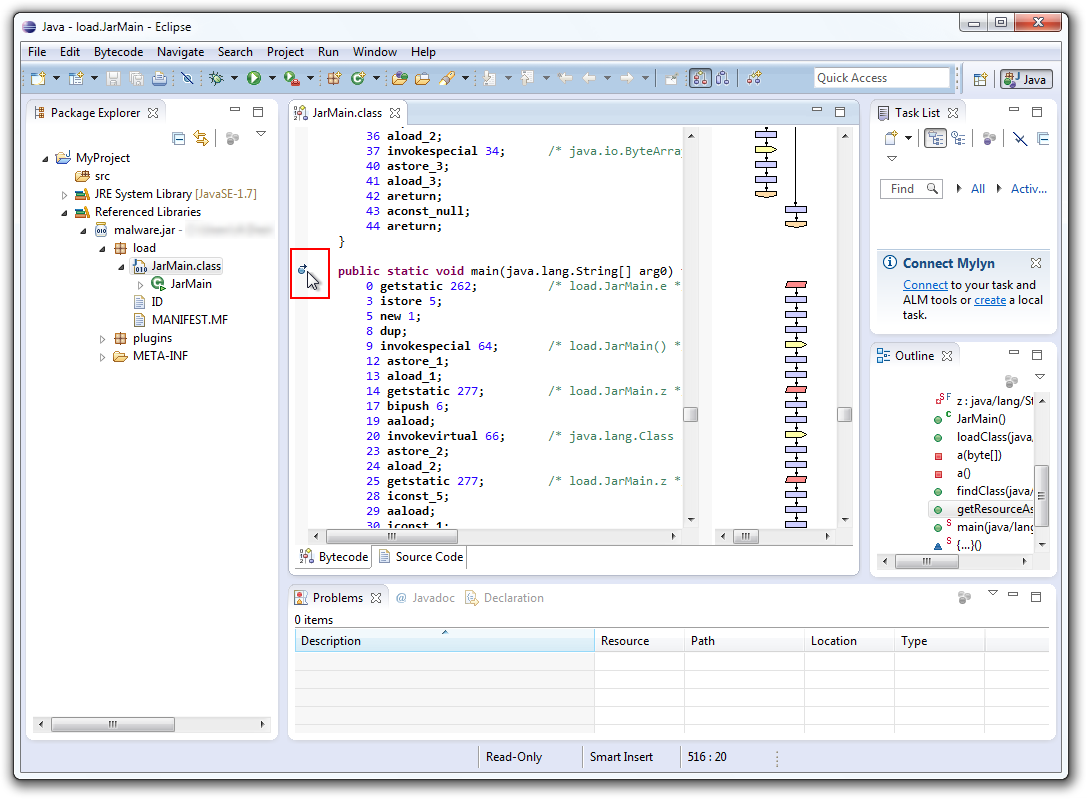

With the JAR’s code now visible in Bytecode Visualizer, you can set breakpoints by double-clicking on the vertical gray bar to the left of the disassembled Java code:

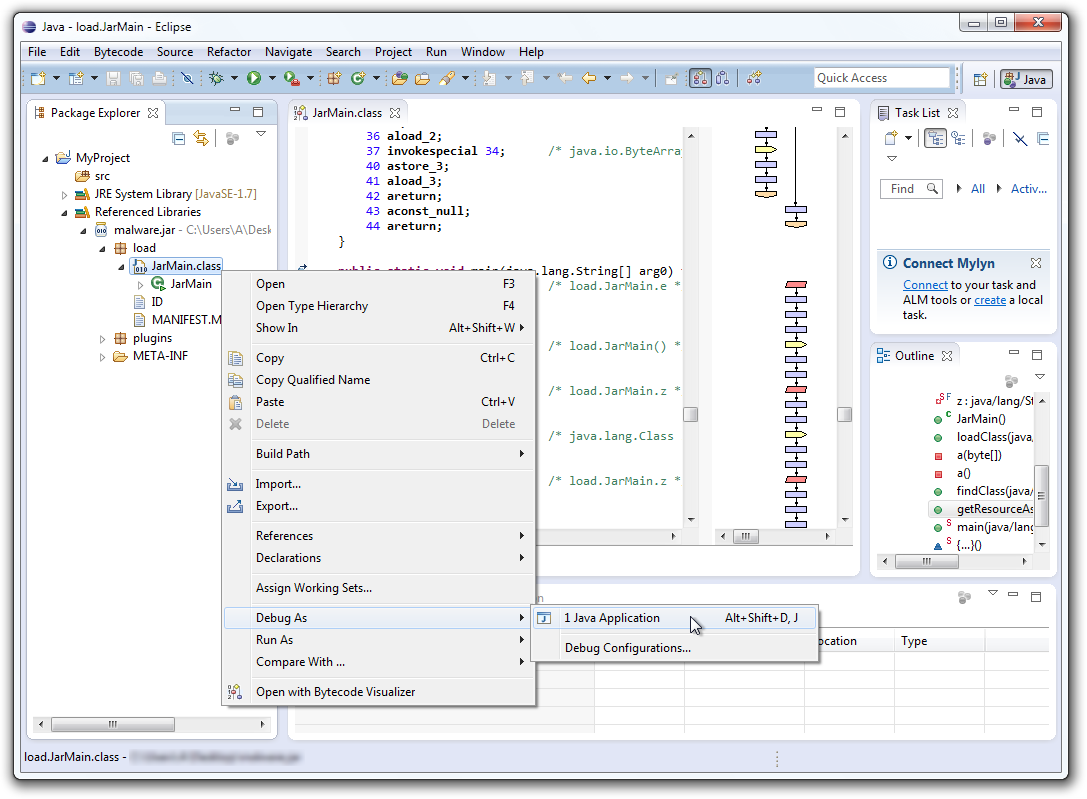

Debug as Java Application

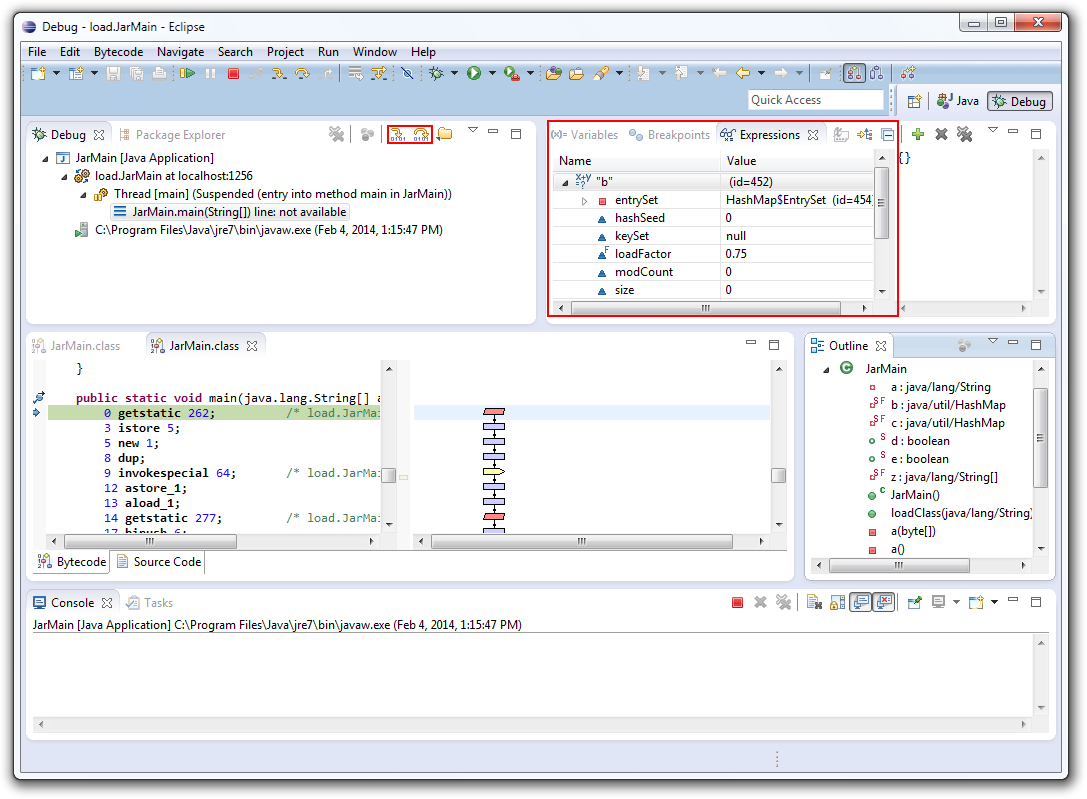

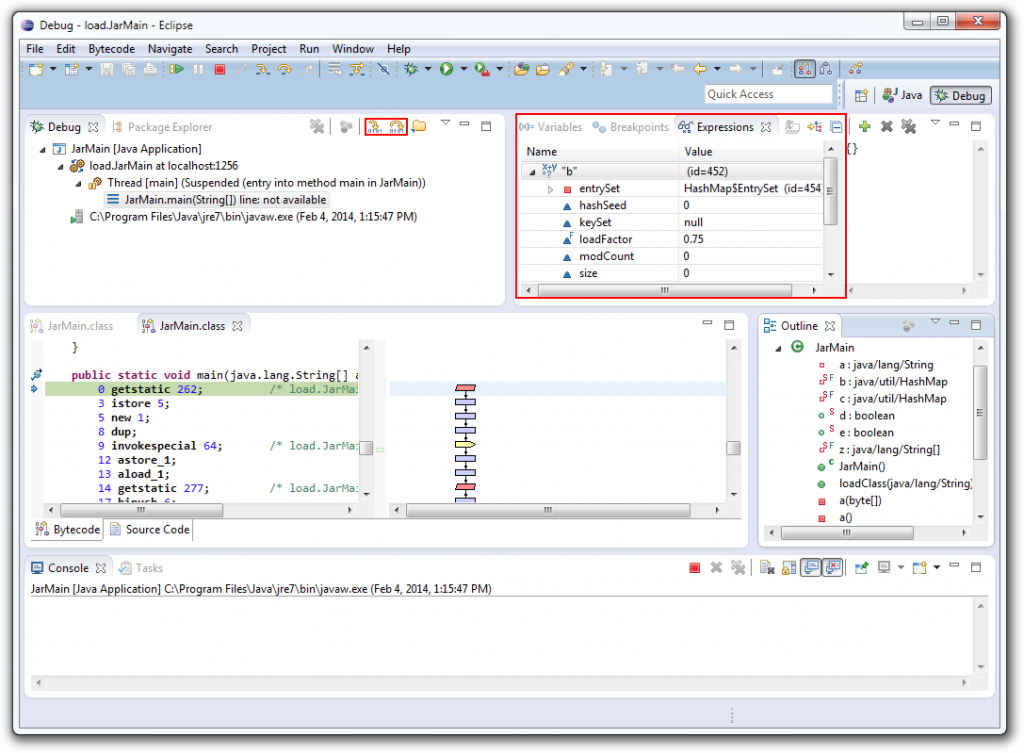

In the Debug perspective view, there are buttons to Step Into Bytecode and Step Over Bytecode (circled in red below). Use the Step Over Bytecode button to perform standard single-stepping; use the Step Into Bytecode button only to step into calls. The Debug perspective also allows you to see local variable in the Variables tab, and to add your own watches in the Expressions tab (you can add this tab via Window → Show View → Expressions in the menu bar); you can see below that I added a watch/expression for variable b:

Debug Perspective

As far as we’ve seen, Bytecode Visualizer does not offer a view of the raw JVM stack, but even without it, tracing the code flow via single-stepping and examining memory with the Variables and Expressions tabs should typically allow you to successfully debug your target as needed.
